4.3.5 Display of pie charts with variable sizes

- 1. You have a column in your source table, which indicates the size of each pie chart, as shown in the sample table in  Chapter 4.3.4 as the rightmost column. You can call this column ‘Size’ or similar.

- 2. You proceed as explained in  Chapter 4.3.4: From the Project manager window: Style > Labels > Option > Data chart >

(If the attribute file (XLS) has not been loaded yet: Choose file window: Select XLS file > Open > Choose link column window: ID > OK) >

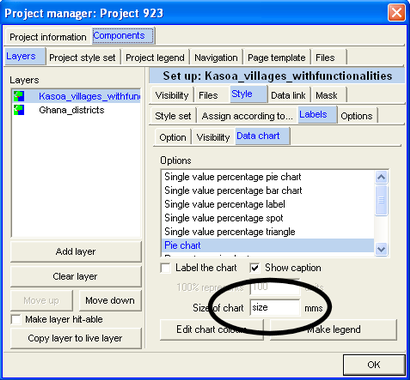

Select the data field(s) you want to display > Data chart > Pie chart > Size of chart: You must enter ‘Size’ (i.e. the column name, as defined before) > OK.

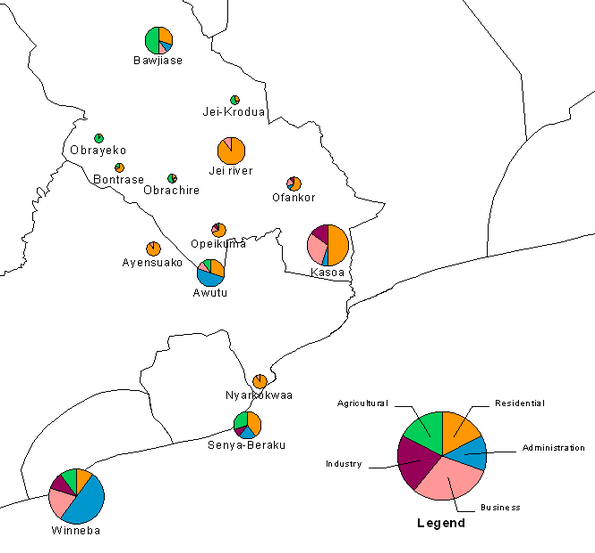

The result will look similar to that:

Note: This requires Map Maker version 19 September 2009 or later.
More examples at end of  Annex 15.1 and  Annex 15.2.
