8. LUPMIS Tools > 8.1 General
8.1 LUPMIS Tools: General
Level of expertise required for this Chapter: Beginner; specifically for LUPMIS @ TCPD
8.1.1 Overview
c) Architecture
To facilitate and standardize the GIS procedures for land use planning, the software package of 'LUPMIS Tools' have been developed. They are not part of the standard Map Maker setup. Currently, there are 7 'Tools', with more functionalities and more 'Tools' under discussion:
Note: Technically, they are programmed in php to satisfy future requests on webbased migration of GIS services. It uses MMmacro and GIS file import/ export features of Map Maker (loc, xy, mme, ptp, geo files, see also Annex 18.5).
Any Questions, Comments?
Feel fee to 'Create Threat': First select the discussion Board, then press the button at the top right:
.
- - - - -
- a) Integration of LUPMIS Tools:

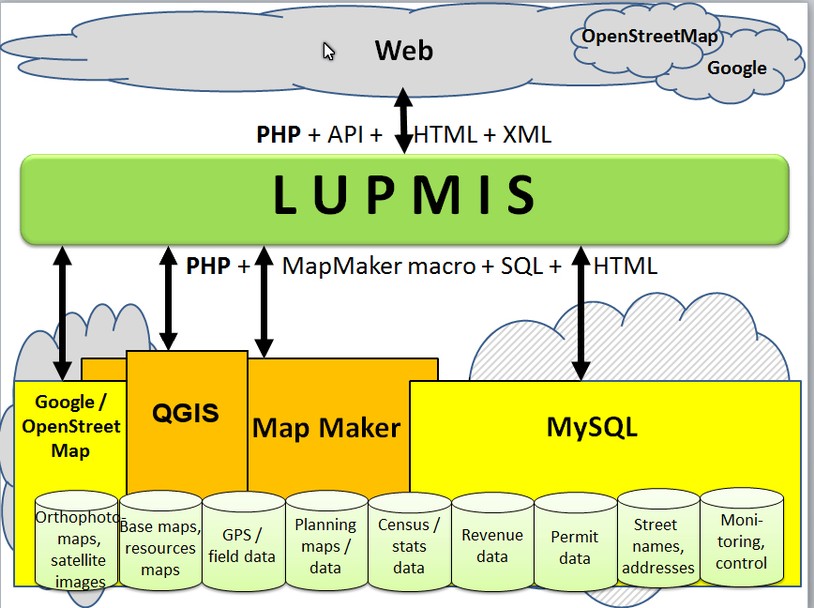

Conceptual integration of 'LUPMIS Tools' in the 3-tier land use planning system is shown in following chart:
- - - - -
- b) Start of LUPMIS Tools:
How to start the 'LUPMIS Tools'? See Annex 1.1.3 for full description or video clip.
In summary:
1. Start Xampp (as installed from the 'InstallationCD') > Start MySQL. You can then close the Xampp Control Panel. (No need to start Apache anymore). If MySQL is installed as a service, this step can be skipped.
3. Start the 'LUPMIS Tools' from the installed LUPMIS icon at your desktop:
For the installation of the 'LUPMIS Tools' see Annex 1.1.
For training questions, see end of Annex 13.2.
- - - - -
- c) Architecture

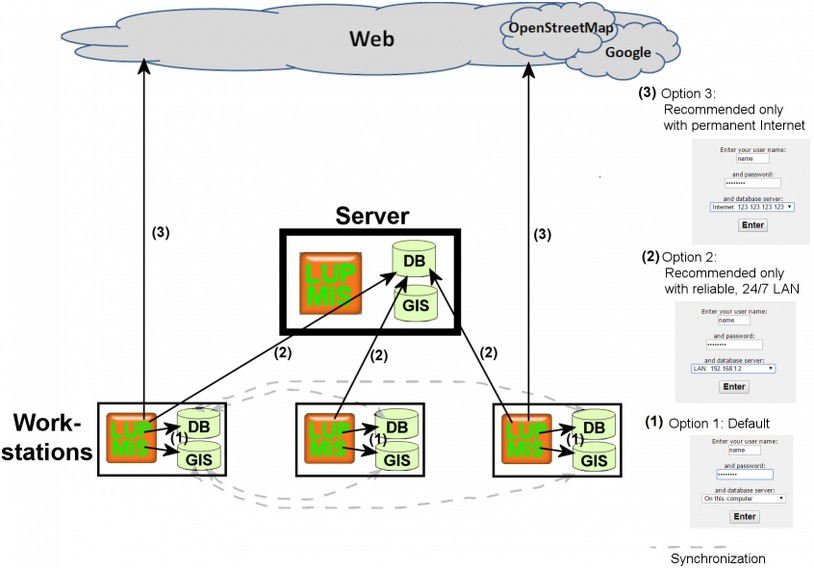

Technical note: The IT architecture of LUPMIS is illustrated below. In future, with improved bandwidth capacities in Ghana, all data will be hosted on the Web.
- - - - -
