Annex 5: Styles
Level of expertise required for this Chapter: Advanced; specifically for LUPMIS @ TCPD
Following style libraries (definitions of colours, line widths, point symbols etc) are currently available as standard LUPMIS styles:

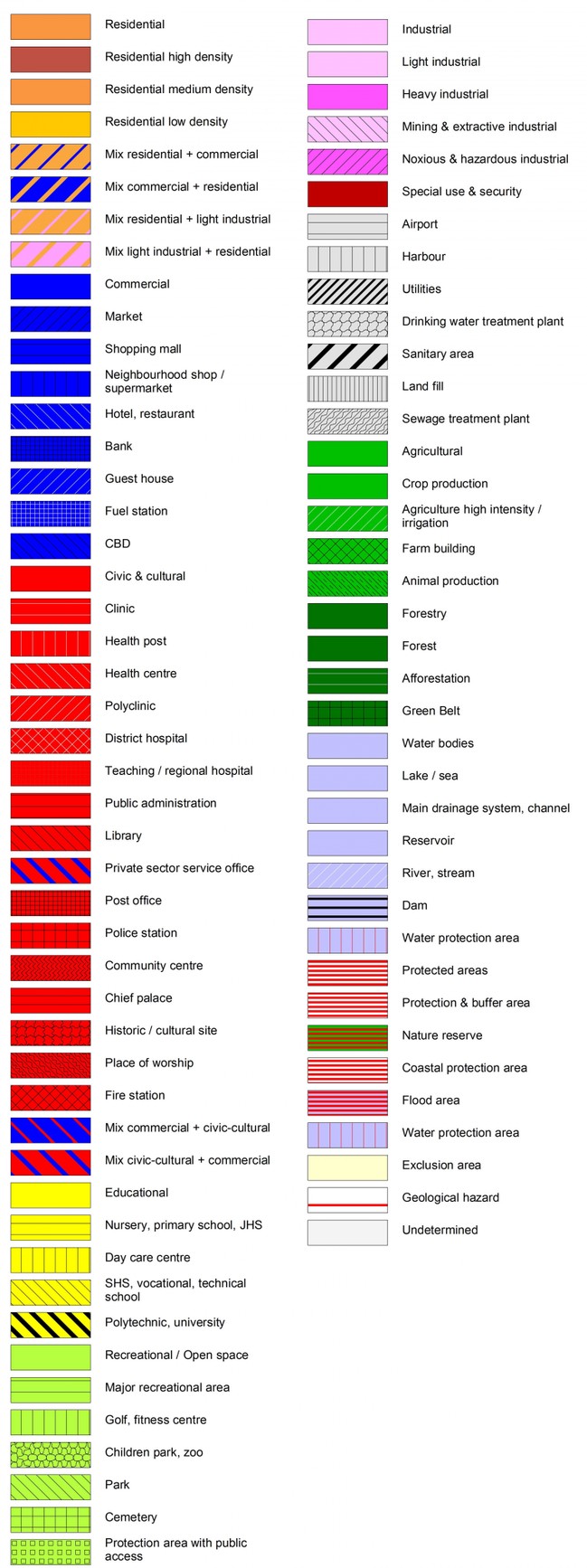

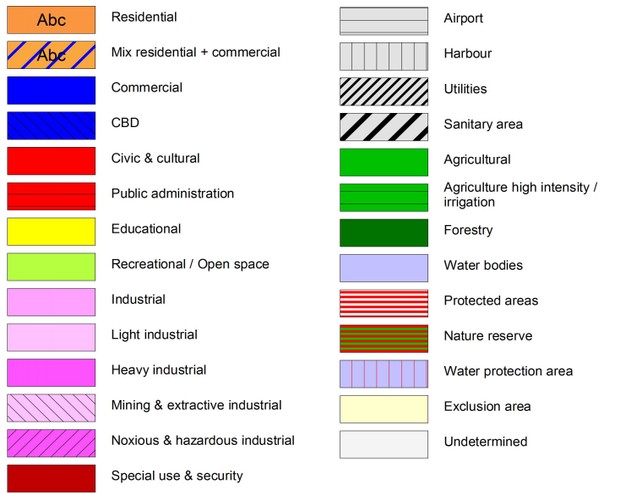

A) For plans:
B) For drawing:
Lines_AllBlk: All lines are in black (no matter which style)
Lines_AllBlu: Blue, -"-
Lines_AllBroken: Broken, -"-
Lines_AllBrokenFat: Broken fat, -"-
Lines_AllCyn: Cyan, -"-
Lines_AllGrn: Green, -"-
Lines_AllMag: Magenta, -"-
Lines_AllRed: Red, -"-
Lines_AllYel: Yellow, -"-
LinesBkRdGrBlYlMgCy: Line style 1 is black, style 2 red, style 3 green, style 4 blue, etc
LinesBlYlMgCyBkRdGr: -"-
LinesCyBkRdGrBlYlMg: -"-
LinesGrBlYlMgCyBkRd: -"-
LinesMgCyBkRdGrBlYl: -"-
LinesRdGrBlYlMgCyBk: -"-
LinesYlMgCyBkRdGrBl: -"-
Polys_AllBlk: All polygons are in black (no matter which style)
Polys_AllBlu: Blue, -"-
Polys_AllGray: Gray, -"-
Polys_AllGrn: Green, -"-
Polys_AllMag: Magenta, -"-
Polys_AllRed: Red, -"-
Polys_AllTransp: Transparent, -"-
Polys_AllYel: Yellow, -"-
C) For specific thematic maps:
Altitude ramp 1-10: For altitude maps with upto 10 units
Altitude ramp 1-22: For altitude maps with upto 22 units
Color ramp red 1-10: For intensity maps with upto 10 units
Colors different
Colors different pale
D) Default
More about styles and style libraries in Chapters 6.2 and 6.6.1.
- - - - -
Names are self-explanatory. tl stands for translucent (half-transparent), op for opaque (not transparent). Latest update of definitions can be found in following Annex 6.
- - - - -

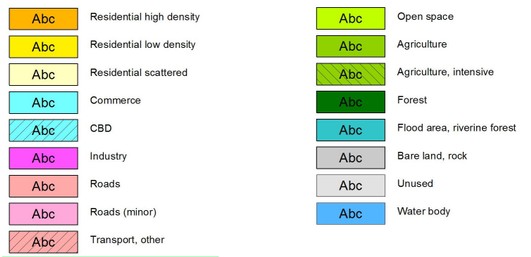

Colors ('styles') for land use mapping (classification in Annex 6.1):
- - - - -
Colors ('styles') for rivers 1st – 5th category (classification in Annex 6.6.2):
- - - - -
Note: Minor recent modifications might not be documented.
