7.6.4 Layout of Local Plan

Level of expertise required for this Chapter: Intermediate; specifically for LUPMIS @ TCPD

If installed, it is the easiest and strongly recommended, to use the LUPMIS 'Printing Tools' to print the final Local Plan map:

- - - - -

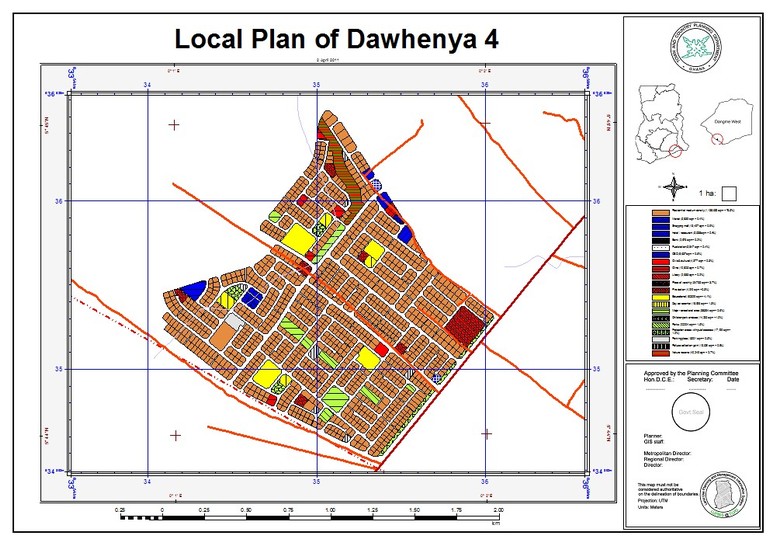

The standard layout for Local Plans (see Chapter 6.5) contains all marginalia such as location map, scale, UTM grid, latitude / longitude graticule, legend, north arrow, approval seal, source.

The final print of the Structure Plan should include:

• LUPMIS remark (see example at end of Chapter 6.3)


• TCPD logo
• Scale bar (see Chapter 6.6.2)
• Legend (see Chapter 6.4)
• Location map (see Chapter 6.3.3)

Map templates will incorporate all these ‘map furniture’ (see Chapter 6.5).

The units and colours have to be standardized for all TCPD Frameworks, as defined in Annex 6.5 and  Annex 5.
